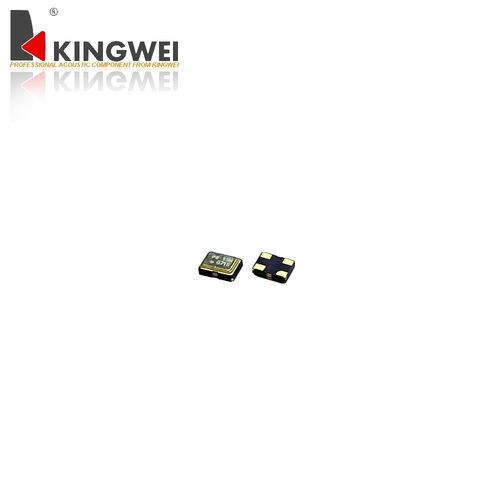

Product ID:PXO3225(3.3V) | General |
Out-Diameter:(W)2.5 x (L)3.2 mm | Height : 0.9 mm |
Electrical Characteristics | General |
Nominal frequency | 1.0 MHz to 170.0 MHz |
Voltage | 3.3V |
Adjustment tolerance | 10 to 50PPM |
Load capacitance | 8 ~ 32 PF |
Output Level | CMOS |
Others | |
Operation Temp.(℃): | -20~+70 |
Storage Temp.(℃): | -55~+85 |
