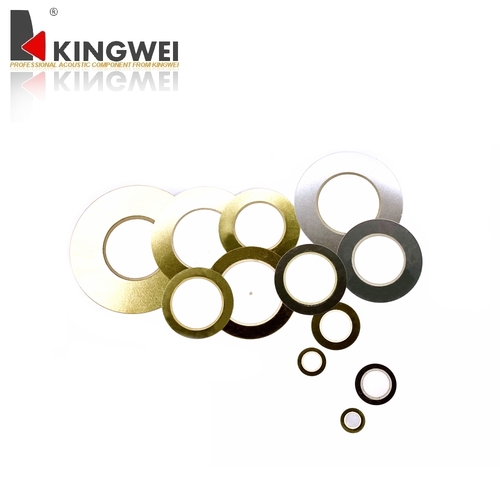

PART NUMBERING SYSTEM | Dimensions | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
KW | 20 | T | 65 | A | 01 | |||||||
(1) | (2) | (3) | (4) | (5) | (6) | |||||||
(1) Piezoelectric Ceramic (2) Diameter of of plate (3) Material identification T-brass G-stainless steel N-nickel alloy B-tinplate (4) Appropriate oscillating frequency, unit : 100HZ (5) For electrode driving:A-External Drive Type B- Self Drive Type (6) Special requirement |
Specification | ||||||
---|---|---|---|---|---|---|
model | Resonant Frequency (KHz) |
Resonant Impedance (max. Ω) |
Capacitance (pF) |
Plate | dimension | |
D | T | |||||
KW9T14A05 | 14.0±0.8 | 1000 | 3500 | Brass | 9 | 0.22 |
KW9N72A05 | 7.2±0.6 | 1000 | 8500 | Alloy | 9 | 0.12 |
KW9N98A05 | 9.8±1.0 | 1500 | 10500 | Alloy | 9 | 9 |
KW9T80A05 | 8±0.5 | 500 | 13000 | Brass | 9 | 0.10 |
KW9N98A05 | 9.8±1.0 | 1500 | 10500 | Alloy | 9 | 9 |
KW9T10A05 | 10±0.5 | 600 | 11000 | Brass | 9 | 0.11 |
KW9T18A05 | 18±1.0 | 500 | 3000 | Brass | 9 | 0.22 |
KW9.5T14.5A05 | 14.5±1.0 | 500 | 7000 | Brass | 9.5 | 0.21 |
KWA10N85A05 | 8.5±0.8 | 1000 | 1000 | Alloy | 10 | 0.12 |
KW10N10A05 | 10.0±1.5 | 1500 | 7500 | Alloy | 10 | 0.17 |
KW11N58A05 | 5.8±0.8 | 1000 | 11000 | Alloy | 11 | 0.13 |
KW11N85A05 | 8.5±0.8 | 1000 | 15000 | Alloy | 11 | 0.17 |
KW11N92A05 | 9.2±1.0 | 1500 | 13000 | Alloy | 11 | 0.18 |
KW12T75A05 | 7.5±1.0 | 1000 | 13000 | Brass | 12 | 0.17 |
KW12T80A05 | 8.0±1.0 | 1000 | 10000 | Brass | 12 | 0.19 |
KW12T85A05 | 8.5±1.0 | 800 | 10000 | Brass | 12 | 0.18 |
KW12T92A05 | 9.2±0.6 | 1000 | 8500 | Brass | 12 | 0.21 |
KW12T95A05 | 9.5±0.8 | 800 | 8000 | Brass | 12 | 0.22 |
KW12T49A05 | 4.9±1.0 | 1000 | 17000 | Brass | 12 | 0.12 |
KW12T56A05 | 5.6±1.0 | 1000 | 15000 | Brass | 12 | 0.12 |
KW12T60A05 | 6.0±0.6 | 1000 | 13000 | Brass | 12 | 0.12 |
KW12N49A05 | 4.9±1.0 | 1000 | 12000 | Alloy | 12 | 0.13 |
KW12N53A05 | 5.3±0.8 | 1000 | 12000 | Alloy | 12 | 0.13 |
KW12N55A05 | 5.5±0.5 | 700 | 15000 | Alloy | 12 | 0.12 |
KW12N60A05 | 6.0±0.5 | 700 | 13000 | Alloy | 12 | 0.13 |
KW12T170A05 | 17.0±2.0 | 500 | 10000 | Brass | 12 | 0.13 |
KW13T60A05 | 6.0±0.5 | 800 | 20000 | Brass | 13 | 0.40 |
KW13.5T75A05 | 7.5±0.5 | 800 | 9000 | Brass | 13.5 | 0.18 |
KW14N67A05 | 6.7±0.5 | 800 | 5000 | Alloy | 14 | 0.22 |
KW15T50A05 | 5.0±0.6 | 500 | 19000 | Brass | 15 | 0.18 |
KW15T55A05 | 5.5±0.6 | 500 | 17000 | Brass | 15 | 0.19 |
KW15T41A05 | 4.1±0.5 | 800 | 8000 | Brass | 15 | 0.20 |
KW15T41A06 | 4.1±0.6 | 500 | 21000 | Brass | 15 | 0.18 |
KW15T41A06 | 4.1±0.6 | 500 | 21000 | Brass | 15 | 0.18 |
KW15T60A05 | 6.0±0.6 | 500 | 14000 | Brass | 15 | 0.22 |
KW15T65A05 | 6.5±0.6 | 500 | 13000 | Brass | 15 | 0.22 |
KW15T65A05 | 6.5±0.6 | 600 | 15000 | Brass | 15 | 0.23 |
KW15T40A05 | 4.0±0.6 | 500 | 31000 | Brass | 15 | 0.12 |
KW15T58A05 | 5.8±0.8 | 800 | 12000 | Brass | 15 | 0.24 |
KW15T85A05 | 8.5±0.7 | 500 | 15000 | Brass | 15 | 0.33 |
KW18T36A05 | 3.6±0.5 | 800 | 14000 | Brass | 18 | 0.22 |
KW20T27A05 | 2.7±0.4 | 400 | 35000 | Brass | 20 | 0.22 |
KW20T30A05 | 3.0±0.4 | 400 | 30000 | Brass | 20 | 0.20 |
KW20T36A05 | 3.6±0.4 | 400 | 23000 | Brass | 20 | 0.23 |
KW20T39A05 | 3.9±0.4 | 400 | 21000 | Brass | 20 | 0.22 |
KW20T40A05 | 4.0±0.4 | 400 | 20000 | Brass | 20 | 0.26 |
KW20T45A05 | 4.5±0.4 | 400 | 15000 | Brass | 20 | 0.29 |
KW20T55A05 | 5.5±0.4 | 400 | 15000 | Brass | 20 | 0.38 |
KW20T62A05 | 56.2±0.5 | 400 | 13000 | Brass | 20 | 0.42 |
KW20T65A05 | 6.5±0.5 | 400 | 12000 | Brass | 20 | 0.40 |
KW20N23A05 | 2.3±0.4 | 400 | 35000 | Alloy | 20 | 0.12 |
KW20N30A05 | 3.0±0.3 | 500 | 25000 | Alloy | 20 | 0.16 |
KW20N40A05 | 4.0±0.4 | 400 | 20000 | Alloy | 20 | 0.24 |
KW20T36A05 | 3.6±0.5 | 500 | 20000 | Brass | 20 | 0.23 |
KW20T39A05 | 3.9±0.4 | 400 | 26000 | Brass | 20 | 0.24 |
KW20T42A05 | 4.2±0.4 | 400 | 25000 | Brass | 20 | 0.30 |
KW20T50A05 | 5.0±0.4 | 300 | 24000 | Brass | 20 | 0.34 |
KW20T63A05 | 6.3±0.5 | 400 | 11000 | Brass | 20 | 0.42 |
KW20T65A05 | 6.5±0.5 | 400 | 15000 | Brass | 20 | 0.40 |
KW20N23A05 | 2.3±0.5 | 400 | 80000 | Alloy | 20 | 0.12 |
KW20N39A05 | 3.9±0.5 | 400 | 25000 | Alloy | 20 | 0.23 |
KW20G30A05 | 3.0±0.4 | 400 | 25000 | SUS | 20 | 0.22 |
KW20G65A05 | 6.5±0.5 | 400 | 15000 | SUS | 20 | 0.40 |
KW21T22A05 | 2.2±0.4 | 400 | 38000 | Brass | 21 | 0.20 |
KW21T25A05 | 2.5±0.4 | 500 | 35000 | Brass | 21 | 0.18 |
KW21T26A05 | 2.6±0.4 | 400 | 30000 | Brass | 21 | 0.20 |
KW21T26A06 | 2.6±0.5 | 500 | 35000 | Brass | 21 | 0.20 |
KW21T34A05 | 3.4±0.4 | 400 | 23000 | Brass | 21 | 0.22 |
KW21T34A06 | 3.4±0.5 | 500 | 25000 | Brass | 21 | 0.24 |
KW21N30A05 | 3.0±0.4 | 400 | 25000 | Alloy | 21 | 0.22 |
KW23T40A05 | 4.0±0.5 | 800 | 12000 | Brass | 22.8 | 0.40 |
KW23T53A05 | 5.3±0.5 | 800 | 22000 | Brass | 23 | 0.15 |
KW23T53A06 | 5.3±0.5 | 800 | 22000 | Brass | 23.2 | 0.15 |
KW27T20A05 | 2.0±0.4 | 400 | 45000 | Brass | 27 | 0.20 |
KW27T24A05 | 2.4±0.4 | 400 | 40000 | Brass | 27 | 0.22 |
KW27T28A05 | 2.8±0.4 | 400 | 30000 | Brass | 27 | 0.33 |
KW27T34A05 | 3.4±0.4 | 400 | 24000 | Brass | 27 | 0.40 |
KW27B35A06 | 3.5±0.5 | 300 | 28000 | Tinplate | 27 | 0.41 |
KW27T41A05 | 4.1±0.4 | 400 | 20000 | Brass | 27 | 0.47 |
KW27B42A06 | 4.2±0.4 | 400 | 25000 | Tinplate | 27 | 0.46 |
KW27B44A06 | 4.4±0.4 | 250 | 25000 | Tinplate | 27 | 0.45 |
KW27T30A05 | 3.0±0.5 | 400 | 28000 | Brass | 27 | 0.35 |
KW27T36A05 | 3.6±0.5 | 500 | 20000 | Brass | 27 | 0.40 |
KW27T38A05 | 3.8±0.4 | 400 | 22000 | Brass | 27 | 0.42 |
KW27T40A05 | 4.0±0.5 | 400 | 20000 | Brass | 27 | 0.40 |
KW27T42A06 | 4.2±0.4 | 400 | 19000 | Brass | 27 | 0.48 |
KW27T42A05 | 4.2±0.4 | 400 | 15000 | Brass | 27 | 0.48 |
KW27T44A05 | 4.4±0.4 | 400 | 10000 | Brass | 27 | 0.52 |
KW27N20A05 | 2.0±0.4 | 400 | 45000 | Alloy | 27 | 0.27 |
KW27N26A05 | 2.6±0.4 | 400 | 45000 | Alloy | 27 | 0.28 |
KW27N33A05 | 3.3±0.4 | 400 | 22000 | Alloy | 27 | 0.37 |
KW27G29A05 | 2.9±0.4 | 400 | 36000 | SUS | 27 | 0.32 |
KW27G44A05 | 4.4±0.3 | 400 | 20000 | SUS | 27 | 0.47 |
KW27T26A05 | 2.6±0.4 | 350 | 45000 | Brass | 27 | 0.28 |
KW27T34A05 | 3.4±0.4 | 400 | 11000 | Brass | 27 | 0.56 |
KW27T36A05 | 3.6±0.4 | 400 | 40000 | Brass | 27 | 0.44 |
KW30T14A05 | 1.4±0.5 | 1000 | 48000 | Brass | 30 | 0.22 |
KW31T16A05 | 1.6±0.4 | 500 | 40000 | Brass | 31 | 0.22 |
KW31N13A05 | 1.3±0.4 | 600 | 45000 | Alloy | 31 | 0.22 |
KW31N13A06 | 1.3±0.3 | 500 | 70000 | Alloy | 31 | 0.24 |
KW31T16A05 | 1.6±0.4 | 500 | 55000 | Brass | 31 | 0.22 |
KW31T16A06 | 1.6±0.4 | 600 | 70000 | Brass | 31 | 0.24 |
KW31N13A05 | 1.3±0.4 | 600 | 55000 | Alloy | 31 | 0.24 |
KW35T12A05 | 1.2±0.4 | 500 | 60000 | Brass | 35 | 0.22 |
KW35T24A05 | 2.4±0.4 | 500 | 74000 | Brass | 35 | 0.48 |
KW35T26A05 | 2.6±0.4 | 300 | 32000 | Brass | 35 | 0.50 |
KW35T26A06 | 2.6±0.4 | 400 | 40000 | Brass | 35 | 0.52 |
KW35T29A05 | 2.9±0.4 | 300 | 30000 | Brass | 35 | 0.58 |
KW35T39A05 | 3.9±0.4 | 400 | 55000 | Brass | 35 | 0.68 |
KW38N11A05 | 1.1±0.4 | 400 | 62000 | Alloy | 38 | 0.28 |
KW41T10A05 | 1.0±0.3 | 800 | 14000 | Brass | 41 | 0.23 |
KW41T10A06 | 1.0±0.4 | 1500 | 60000 | Brass | 41 | 0.22 |
KW41N08A05 | 0.8±0.4 | 800 | 77000 | Alloy | 41 | 0.22 |
KW41N11A05 | 1.1±0.5 | 300 | 20000 | Alloy | 41 | 0.34 |
KW41T10A08 | 1.0±0.4 | 600 | 90000 | Brass | 41 | 0.22 |
KW41N25A05 | 2.5±0.5 | 300 | 20000 | Alloy | 41 | 0.34 |
KW41T10A07 | 1.0±0.4 | 600 | 70000 | Brass | 41 | 0.24 |
KW41G37A05 | 3.7±0.4 | 500 | 75000 | SUS | 43 | 0.40 |
KW50T10A05 | 1.0±0.4 | 600 | 50000 | Brass | 50 | 0.42 |
KW50T28A05 | 2.8±0.4 | 400 | 35000 | Brass | 50 | 0.44 |
KW50T10A06 | 1.0±0.4 | 600 | 60000 | Brass | 50 | 0.44 |
KW50T22A05 | 2.2±0.4 | 400 | 100000 | Brass | 50 | 0.32 |
KW50T30A05 | 3.0±0.5 | 500 | 35000 | Brass | 50 | 0.45 |
KW55T48A05 | 4.8±0.5 | 500 | 25000 | Brass | 55 | 0.43 |
